In-Screed Heating Cable Under All Floor Coverings

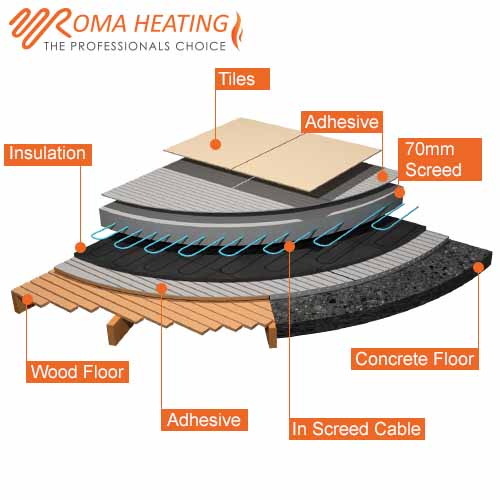

In Screed Heating Cable can be installed under any floor. The perfect option for new build or extension projects, designed to be laid into a 50mm -100mm liquid or sand and cement screed substrate. Easy to install and can be used in any room size or environment. To increase the efficiency of the heating. The cable should be laid directly onto a Celotex or Kingspan thermal insulation.
Alternatively, it can be laid on to our Cement Coated Tile Backer Boards, or XPS Hard Thermal Insulation Boards. The cable also comes with high adhesion fixing tape and easy-to-follow step-by-step instruction guide. This includes an equation to work out your exact wire spacing.
For peace of mind, the heating is covered by a full 15-year manufacturer’s warranty. If used as a primary heat source, we recommended a floor coverage of at least 90% with the cable achieved. The cable can be spaced as close as 70mm within your concrete substrate (providing approximately 260w/per sqm). This makes the In screed cable the most powerful and responsive form of heating available under any floor.
Electric v Water – What is the difference?
The common misconception is that electric underfloor heating is far more expensive than its water/gas counterparts. In truth, they are super efficient, when controlled correctly and installed on thermal boards. Unlike water-based heating, which is predominantly regulated off an air sensor, electric heating should always be controlled off a floor sensor. This enables the heating to be far more efficient and responsive, far quicker than the more expensive and unreliable underfloor water heating.
The main benefit of underfloor heating is that there are no unsightly radiators required in most instances. Electric heating can be also used in many ways. It can be used as a comfort heat source, taking the chill off the floor in the colder months, or as a primary heat, with 100% of the floor covered with the Loose wire or In screed cables.
|Features / Technical Specifications|
|18w/lm output / Dual Core – Potential To Offer 260w/sqm||15 Year Warranty|
|Perfect For New builds||Or Extensions|
|Super tough & durable heat cable||Suitable for any floor|
|Easy and quick to lay||Supplied with fixing tape|
|Operating Voltage 230/240V – 50Hz||Double insulated Element|
|Earth connection||Fully sheathed and earthed elements|
|2.5m long cold / connection tails||3mm long Floor sensor probe / 10k Ohms thermistor (supplied with all thermostats or purchased individually)|
|Compatible with HC Decoupling||Suitable For Any Floor|
|Enhanced with XPS||Or Tile backer boards|
|Compatible With Celotex||And Kingspan|
|Full fitting instructions||Technical Free Phone Help Line|
|Next working day delivery service (when ordered before noon)|
Technical Support, Fitting and Warranty Information
For your peace of mind, our heat mats and loose cables are covered with our Lifetime Guarantee. We are here to assist and advise, before or after a purchase has been made. We can help determine the best solution and coverage of heating you require for any project. Our technical team have over 50 years of combined knowledge and expertise, in the installation and supply of electric heating. Therefore, there is no question or query we wouldn’t be able to answer.
In the unlikely event the heating develops a fault or stops working after installation, we offer free technical support over the phone. In most instances, we can help determine how this may have been caused, resolving most issues with you over the phone. If an onsite repair needs to be done, we have a specialist team who can locate and repair faults under any floor. Repairs can usually be rectified quickly and efficiently, with minimal disruption to your installation or daily routines.
In essence, electric heating is very basic how it operates, the only mechanical/moving parts of the kit being the thermostat controllers. Therefore, when installed correctly and the heating signed off by a qualified electrician, your product is covered with our Lifetime Guarantee.
