Tile Backer Insulation Board
Price range: £11.98 through £26.66 Exc. VAT
INTERESTED IN BECOMING A ROMA INSTALLER OR STOCKIST?
Sign Up For A Trade Account HERE
Sign Up For A Trade Account HERE
- ALL IN STOCK – Next Day Delivery
- Available in 6mm, 10mm, 20mm and 30mm Thickness
- Recommended Insulation For Wooden Sub Floors
- Compatible With 150W/M²/200W/M² Loose Wire & Mats
- Free Technical Support
- Complies To Modern British Standards (BS 5385:1: 2018)
Additional delivery charges may apply outside UK mainland.
- 6mm, 10mm, 20mm, and 30mm Depth Options
- High Compression Loading – 400 kPa (40 tonnes/m²)
- 100% Waterproof
- Safe & Easy To Handle
- Thermal Conductivity Of 0.033 W/mK
- Increases Response/Efficiency Of Underfloor Heating (UFH) Systems
- Suitable For Internal & External Applications
- Life Time Guarantee
- Compatible With Tile Backer Board Fixing Discs
- Decoupling Protection – Reduces Risk Of Tile & Grout Cracking
- Next Day Delivery Service

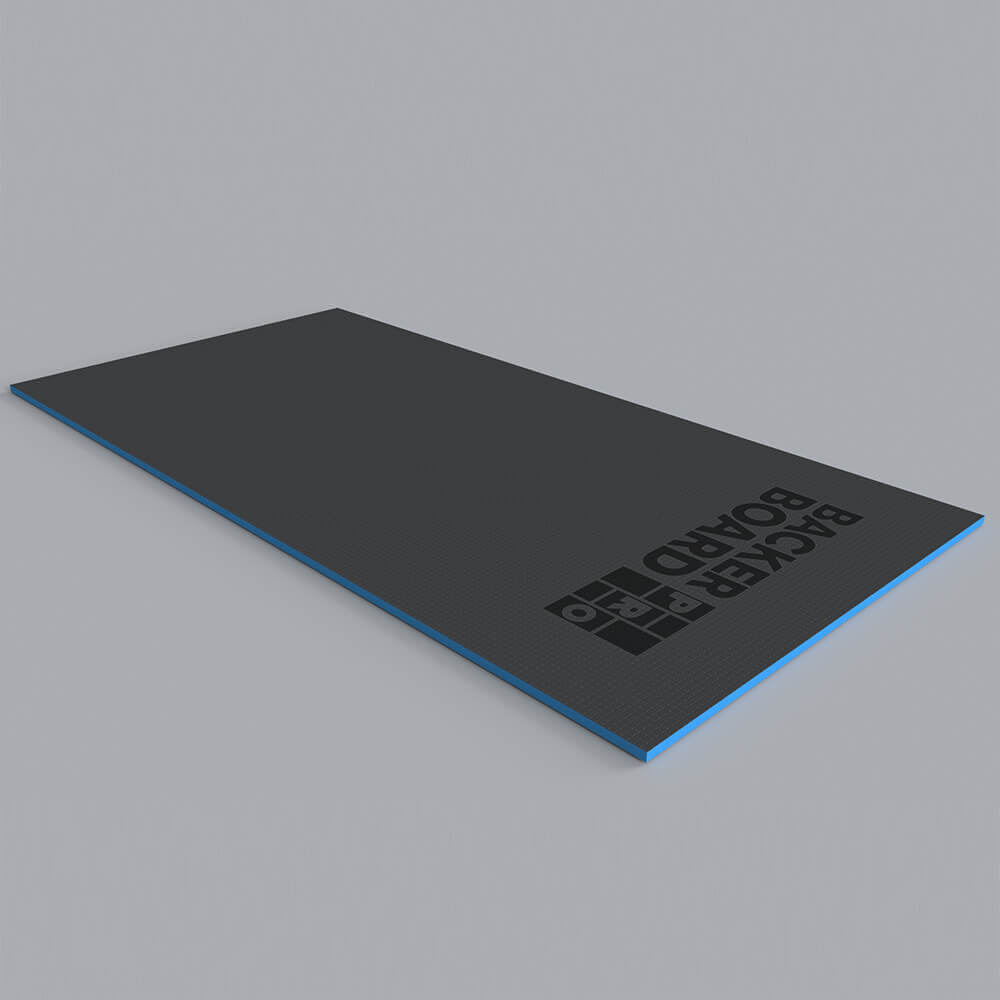

Tile Backer Insulation Board
Backer Board PRO
Backer Board PRO Tile Backer Insulation Boards deliver premium thermal insulation and create a reliable tiling surface. You can use them confidently in bathrooms, wet rooms, and flooring projects.
You can choose from four thickness options — 6, 10, 20, and 30 mm. These boards work equally well on walls and floors. Moreover, they perform effectively in both Internal & External applications.
Because they are designed for efficiency, Backer Board PRO helps underfloor heating systems warm up faster and consume less energy. As a result, you save both time and money.
Key Features
- Decoupling Protection: Actively Reduces Risk Of Tile & Grout Cracking By Absorbing Horizontal Sub-floor Movement.
- 100% Waterproof: The Extruded Polystyrene (XPS) Core Blocks Water Completely — Ideal For Bathrooms & Showers.
- Thermal Insulation: Offers A Thermal Conductivity Of 0.033 W/mK, Which Improves Energy Performance In Floors, Walls & Ceilings.
- Strong Tile Adhesion: The Cement Key Surface Creates A Firm Tile Bond With Pull-Off Strength Exceeding 100 kg/m².
- Lightweight & Easy To Cut: Installers Can Trim Panels Quickly With A Utility Knife Or Saw, Saving Valuable Time.
- Durable In Varied Conditions: Withstands Freeze–Thaw Cycles And Performs Reliably Across Wide Temperature Ranges.

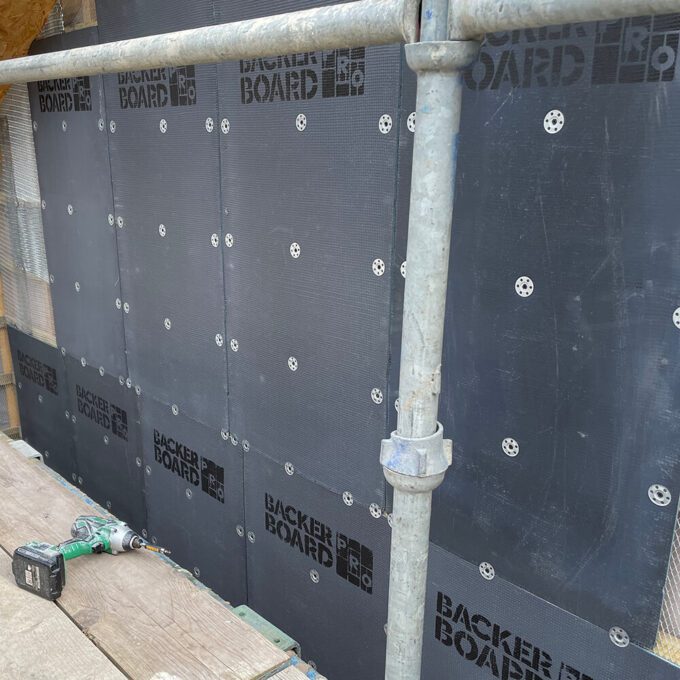

- Indoor & Outdoor Use: Works Perfectly For Wall & Floor Tiling, Including Patios And Other Exterior Areas.
- Fixings: Install Boards Securely With Flexible Tile Adhesive Or Strengthen Further Using Washer & Screw Fixings.
Need Help Or Advice?
Every Tile Backer Board comes with a Lifetime Warranty to give you complete peace of mind.
For guidance or product support, reach out to the Roma Heating team today:
📞 Call: 01803 316131
📧 Email: sales@romaheating.co.uk
Additional information
| Brand | Backer Board PRO |
|---|---|
| Coverage | 0.72sqm |
| Thickness | 6mm, 10mm, 20mm, 30mm |
| Length | 1200mm |
| Width | 600mm |
| Waterproof Rating | 100% – When Encapusulated In Adhesive Or Self Levelling Compound |
| Thermal Conductivity | 0.033 W/mK |
| Thermal Resistance | 6 mm: 0.182 m² K/W |
| Fire Protection Class | BS 3837 B1 DIN British Standard |
| Compression Strength | 400 kPa (At 10% Deformation) — Equivalent To 40 tonnes/m² |
| Installation | Stuck Down with Adhesive or Screwed Down with Washers |
| Material | Extruded Polystyrene (XPS) Core / Polymer Cement Mortar & Fibreglass Mesh Coating. |
Fitting Instructions
Installation Of Roma Tile Backer BoardsTechnical Specifications
- Material: Extruded Polystyrene (XPS) Core With Polymer Cement & Fibreglass Mesh Coating
- Dimensions: 600 × 1200 mm (0.72m² Uncut)
- Depths: 6, 10, 20, 30mm
- Compressive Strength: 400 kPa (At 10% Deformation) — Equivalent To 40 tonnes/m²
- Thermal Conductivity: 0.033 W/mK (EN 13164)
- Water Absorption (XPS): 0.7% (EN 12087)
- Coefficient Of Thermal Expansion: 8 × 10-6 K-1 (ASTM D696)
- Max. Loading: Typically ~100 kg/m²
- Environmental: Zero Ozone Depletion Potential (ODP)
