XPS Thermal Insulation Board

Price range: £2.92 through £10.52 Exc. VAT

INTERESTED IN BECOMING A ROMA INSTALLER OR STOCKIST?

Sign Up For A Trade Account HERE
  • ALL IN STOCK – Next Day Delivery
  • Suitable For Concrete & Wood Sub Floors
  • Available in 6mm, 10mm, 20mm & 30mm Depth Options
  • Compatible With 150W/M² Aluminium Foil Mats – Under Rubber Backed LVT
  • Lowers U Value / Reduces Energy Usage
  • Maximize Output & Efficiency Of UFH
Loading...
Part No: IN-HA

Additional delivery charges may apply outside UK mainland.

  • XPS Thermal Insulation Board For Concrete & Wood Sub Floors
  • Easy To Install – Can Be Fixed With Flexible Tile Adhesive
  • Next Working Day Delivery – Order Before 12PM
  • Aids Efficiency & Reduces U Value Of Zone
  • Compatible With UFH Systems
  • All Products In Stock
  • Free Technical Support
  • Available in 6mm, 10mm, 20mm & 30mm Depth Options
  • Reduces UFH Running Costs

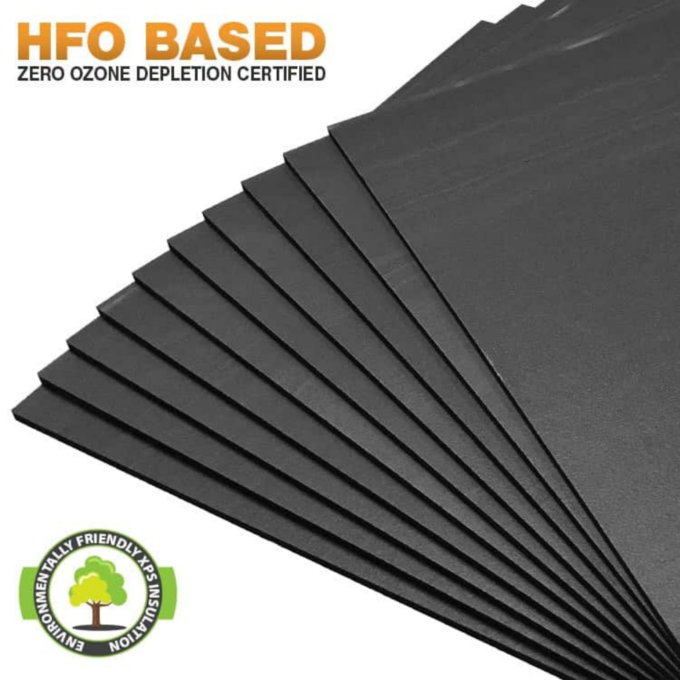

XPS Thermal Insulation Board

XPS Thermal Insulation Boards offer an efficient, cost-effective solution for improving the performance of electric underfloor heating systems.

Suitable for both concrete and wooden sub-floors, XPS insulation is a versatile choice for a wide range of flooring projects.

These lightweight and durable boards are the recommended underlay for the 150W UFH Foil Heating System when installed beneath rubber-backed LVT flooring (minimum thickness 5mm).

With the correct insulation installed, this will maximise heat output and energy efficiency of your UFH system.

Why Choose XPS Insulation for Underfloor Heating?

XPS insulation boards are one of the most affordable and effective ways to enhance the performance of 150W/M² and 200W/M² electric underfloor heating (UFH) systems, especially when used over concrete sub-floors.

They are also ideal for use with embedded underfloor heating systems.

By creating a high-performance thermal barrier between the sub-floor and your heating system, XPS insulation ensures rapid heat-up times, more consistent heat distribution, and reduced energy loss. This translates to lower energy bills and greater comfort in your home or commercial space.

Quick & Easy To Install

XPS Thermal Insulation Boards are designed for simple, floating installation beneath 150W/M² Aluminium Foil Heating Mats.

Their lightweight design and compatibility with a variety of flooring types make them a popular choice among both professional installers and DIYers.

Need to adjust your floor height? Add a layer of 6mm, 10mm, 20mm, or 30mm XPS Thermal Insulation Boards to meet door thresholds or match existing flooring levels.

Perfect for LVT, Vinyl, and Amtico Flooring

For rubber-backed click flooring types such as LVT, Vinyl, and Amtico, XPS insulation boards provide the optimal combination of thermal efficiency and support. They are the preferred underlay solution for maintaining performance and longevity in underfloor heating installations.

Need Any Help? Give Our Team At Roma A Call Or Email

Call Us On 01803 316131

sales@romaheating.co.uk





These are XPS thermal insulation boards for floors, 600 x 620mm and 6, 10, 20 or 30mm thick, sold per board (0.37m² each), made to go under electric underfloor heating on concrete or wood subfloors. They are the affordable insulation layer that cuts heat loss into the subfloor, so the heating warms up faster and runs more efficiently, and they fix down with flexible tile adhesive. In stock for next working day delivery, with trade pricing for account holders.

Specification: thermal conductivity 0.030 W/mK; thermal resistance 0.17 at 6mm, 0.29 at 10mm, 0.57 at 20mm and 0.86 at 30mm (m²K/W); density 30 kg/m³; water absorption under 0.7%; temperature range -50 to +75°C; Euroclass E, not for exposed use. Divide the floor area by 0.37 for the number of boards.

Which insulation board for the job?

XPS thermal board

For 150W and 200W mats and loose wire embedded over it, and the underlay for the 150W foil mat beneath rubber-backed LVT, vinyl and Amtico (minimum 5mm). Stack thicknesses to meet a door threshold.

This product

Tile backer board

An XPS core with a cement faced surface for tiles to bond to, 100% waterproof, 400 kPa load capacity, and a decoupling layer against tile and grout cracking. For tiled floors, walls and wet rooms.

View tile backer boards

Impact Plus

The recommended underlay for the 150W foil mat under laminate and engineered wood: cushioned, an acoustic barrier, in 10m² rolls, also in a self adhesive foil lined version.

View Impact Plus

For in-screed cable in a new build or extension, the cable is laid on Celotex or Kingspan boards, or on tile backer or XPS. See in-screed cable.

XPS board questions the trade asks us

Is XPS the same as tile backer board?

No. Tile backer board has an XPS core with a cement faced surface for the tiles to bond to, and it is waterproof. XPS is the plain insulation board, the lower cost option.

Which heating goes on it?

150W and 200W per m² heating mats and loose wire, embedded in self-levelling compound, and the 150W foil mat floated on it under rubber-backed LVT, vinyl and Amtico.

How is it fixed?

With flexible tile adhesive, on concrete or wooden subfloors. Under a foil mat it is a floating installation.

Can I use it to raise the floor height?

Yes. Add a layer of 6, 10, 20 or 30mm board to meet door thresholds or match existing floor levels.

Can I get pricing for a large order?

Yes. Trade accounts get trade pricing on every thickness, and for a large floor or a run of jobs, send us the areas and we will price it as a project.

Additional information

Depth Options

6mm, 10mm, 20mm, 30mm

Board Size

600mm x 620mm

SQM Coverage

0.37

Fire Classification

Euroclass E – Not For Exposed Use

Compatibility

UFH Foil Mats, Embedded UFH, Click Flooring (Rubber Backed)

Temperature Range

-50° / +75°

Density

30 kg/m³

Thermal Conductivity (λ)

0.030 W/mK

Thermal Resistance (R)

0.17 @ 6mm, 0.29 @10mm, 0.57 @ 20mm, 0.86 @ 30mm m²-K/W

Water Absorption

<0.7 %

Downloads

Download XPS Insulation Boards Data Sheet
