Underfloor Heating Foil

150w/m2 Aluminium Foil Heat Mat for Laminate/'Click' LVT/'Click' Vinyl/'Click' Amtico

The 150w/m2 Aluminium Foil Mat is the recommended underfloor heating solution under most Laminate & Wood floors. It can also be installed under compatible lower profile 'Click' floors, like Vinyl, LVT and Amtico.

The mat uniquely conducts heat beneath the floor, making it super responsive and efficient. One of the benefits of the Foil mat, is that the mat doesn't need to be embedded in an adhesive or latex, unlike most water and electric heat systems.

Rated at 150w/sqm, we offer the largest range of sqm sizes in the UK, with our largest Aluminium Foil mat being 12sqm - 0.5m in width x 24m in length. On rooms/zones larger than 12sqm, more than one mat can be installed.

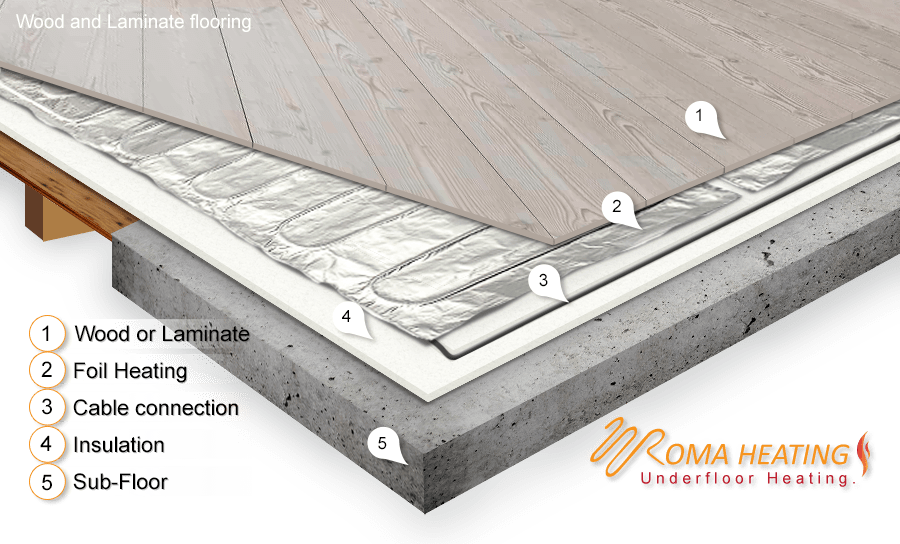

Installation / The Importance of the Correct Insulation & Heat System

The mats are very easy to install, positioned 'floating' beneath the final floor. Importantly, the heating should never be laid directly on to a concrete or wood sub floor. Without the correct insulation installed, will drastically reduce the response time and void the warranty of the heating.

It is important to consult the floor manufacturer, making sure it is compatible with a 'floating' heat system. Alternatively, the loose cable or mesh mats can be installed (embedded in a self levelling compound).

The Foil mat is safe to be installed in Bathrooms and Wet Rooms, when installed beneath Waterproof flooring. Under Laminate or Wood, our 6mm Impact Plus Insulation should be installed, before the Foil mats are laid.

If looking to raise the floor height to accommodate thresholds, an additional layer of 6, 10, 20 or 30mm XPS Thermal Boards can be installed beneath the Impact Plus Insulation. Under rubber backed lower profile click floors (like LVT/Vinyl/Amtico) only the XPS thermal boards should be installed.

Unsure what type of system you need?

Please give our technical team a call or email.

Technical Support, Fitting and Warranty Information

For your peace of mind, all our heating mats and loose cables are covered with our Lifetime Guarantee. We are here to assist and advise, before or after a purchase has been made. We can help determine the best solution and coverage of heating you require for any project.

Our technical team have over 50 years combined knowledge and expertise in the installation and supply of electric heating. Therefore, there is no question or query we wouldn't be able to answer.

In the unlikely event the heating develops a fault, or stops working after installation, we offer free technical support over the phone. In most instances, we can help determine how this may have been caused and resolve the issue with you over the phone.

If an onsite repair needs to be done, we have a specialist team who can locate and repair any faults under any floor. Repairs can usually be rectified quickly and efficiently, with minimal disruption to your installation or daily routines.

In essence, electric heating is very basic how it operates, with the only mechanical/moving parts of the kit being the thermostat controllers. Therefore, when installed correctly, the recommended products are used and the heating signed off by a qualified electrician, your product is covered with our Lifetime Guarantee.

We are here to help, whatever the situation or query, 24/7 and 365 days a year.

The Roma Heating Team

Underfloor Foil Mat Features

• 150w/sqm output / Dual Core
• Ultra thin & durable heating element (only 1.5mm thick)
• Supplied with fixing tape and thermal bridging tape
• Easy and quick to lay
• Pre-spaced wire (to determine wattage) attached onto tough Aluminium Foil backing
• 15 Year Manufacturer Warranty
• Full fitting instructions
• Technical Free Phone Help Line
• Next working day delivery service (when ordered before 12pm)

Technical Specifications

• Operating Voltage 230/240V - 50Hz
• 150w/sqm Wattage/Output
• Double insulated Element
• Earth connection
• Mat width 0.5m (largest mat 12sqm / 0.5m x 24m)
• Multiple mats can be used to cover larger areas
• 2.5m long cold / connection tails
• 3mm long Floor sensor probe / 10k Ohms thermistor (supplied with all thermostats or purchased individually)
• Cable depth 1.5mm

Highly Recommended With This System

At Roma Heating we offer a free design service to make the whole process a little easier.

If you would like a free quote or just a little more information please feel free to get in touch with us on 01803 316131.

Our time and advice is free and we can recommend the best underfloor heating system for you.
