Underfloor Heating Mats 200w

Underfloor Heating Mat 200w/m2

Underfloor Heating Mat 200w, is the perfect solution when looking for a primary heat source under the floor. They are the professional's choice under Tiles or Natural Stone, although can be installed under other floor types, when embedded in a latex/self levelling compound.

At only 2mm thickness, they are the lowest profile heating element on the market. The mats can easily be installed into most areas or environments, with the heating element attached to a self adhesive mesh for ease of install. In smaller or more awkward shaped rooms, loose cable may be a better option, recommended in small WCs, Bathrooms or Wet Rooms, as it offers wall to wall heating.

We hold the widest range of heat mats and loose wire cables in the UK. Rated at 200w, the heat mats are available in variety of sqm sizes. Our largest 200w mat is 12sqm, supplied as a continuous mat - 0.5m in width x 24m in length.

Please note that multiple mats can be used to cover the heated area. On larger rooms/zones, additional thermostats or a 25amp or 40amp relays can be installed (dependent on electrical load/heated area).

Installation

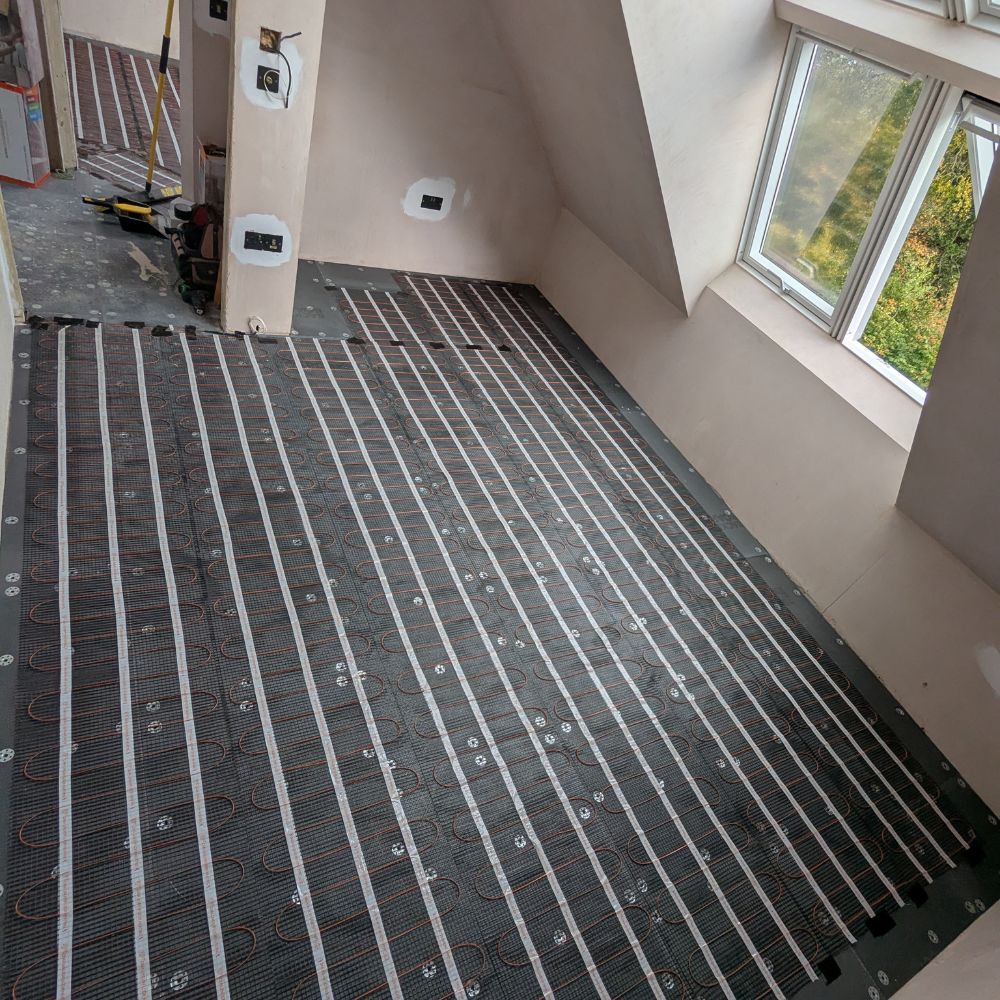

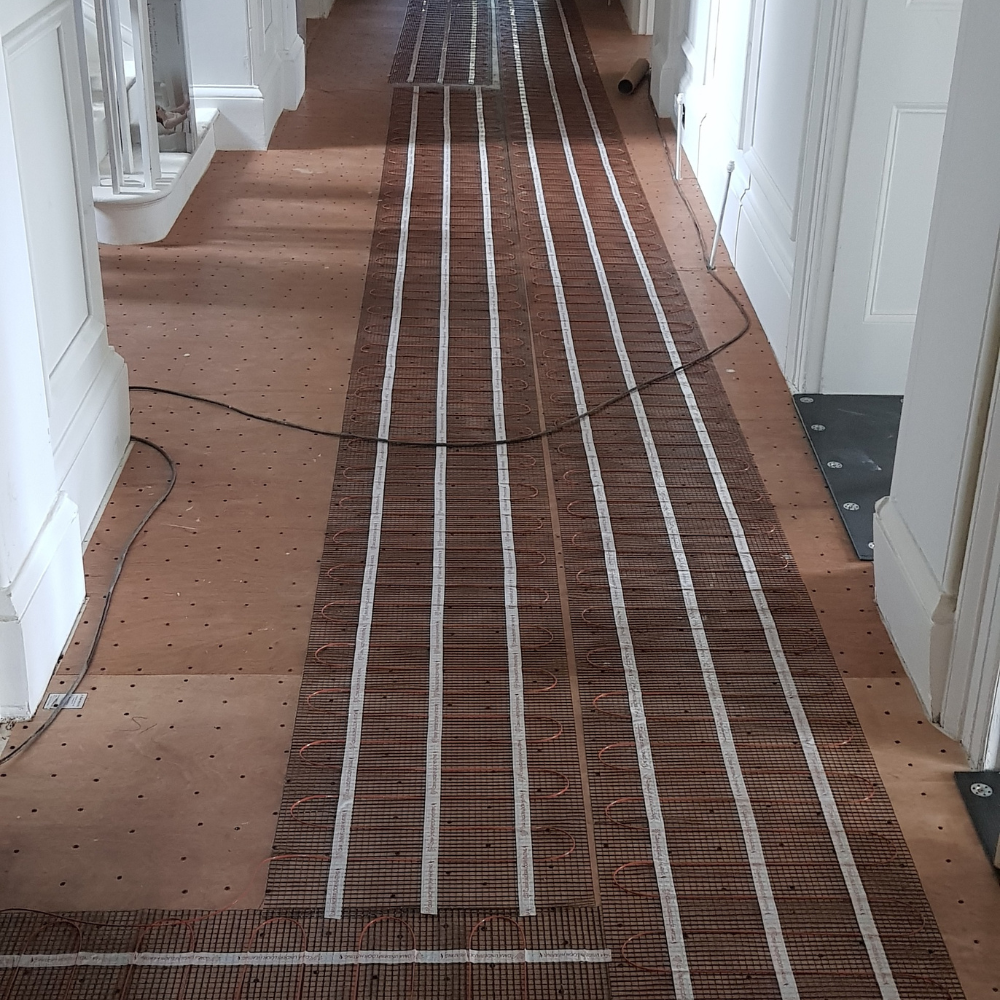

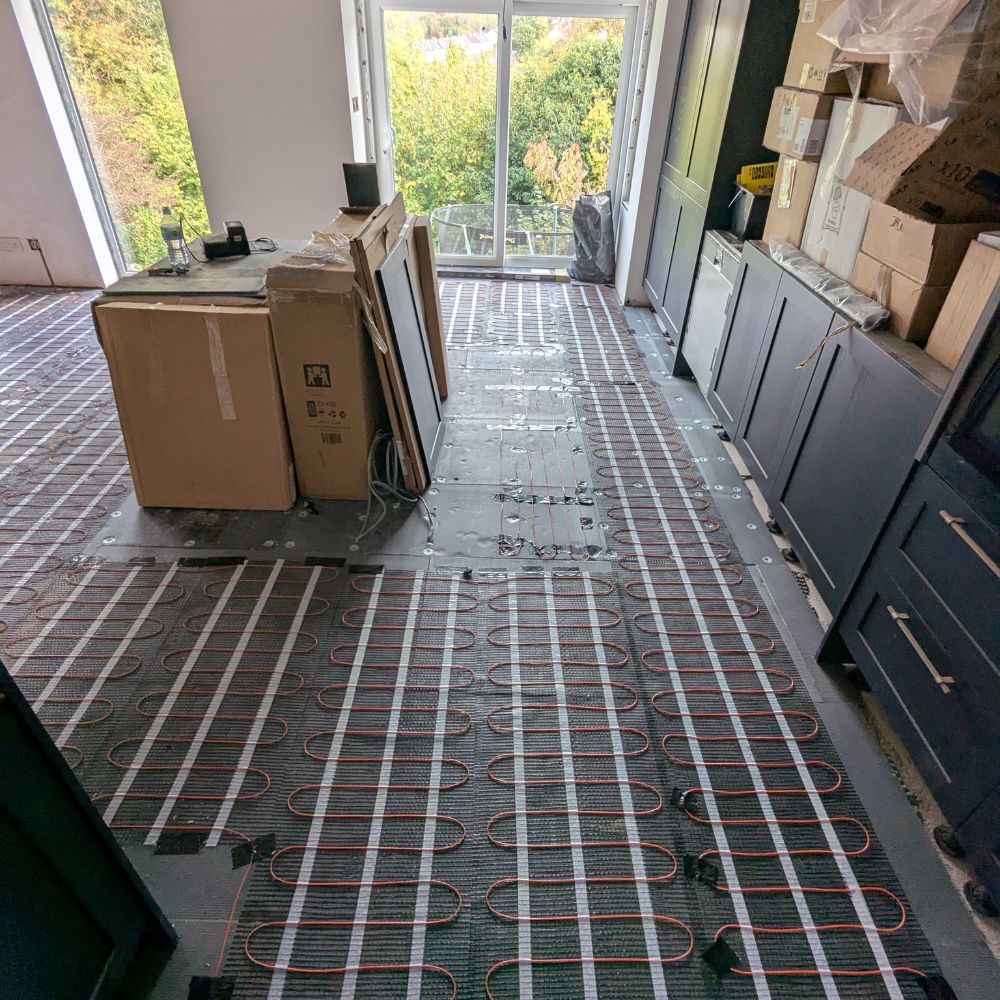

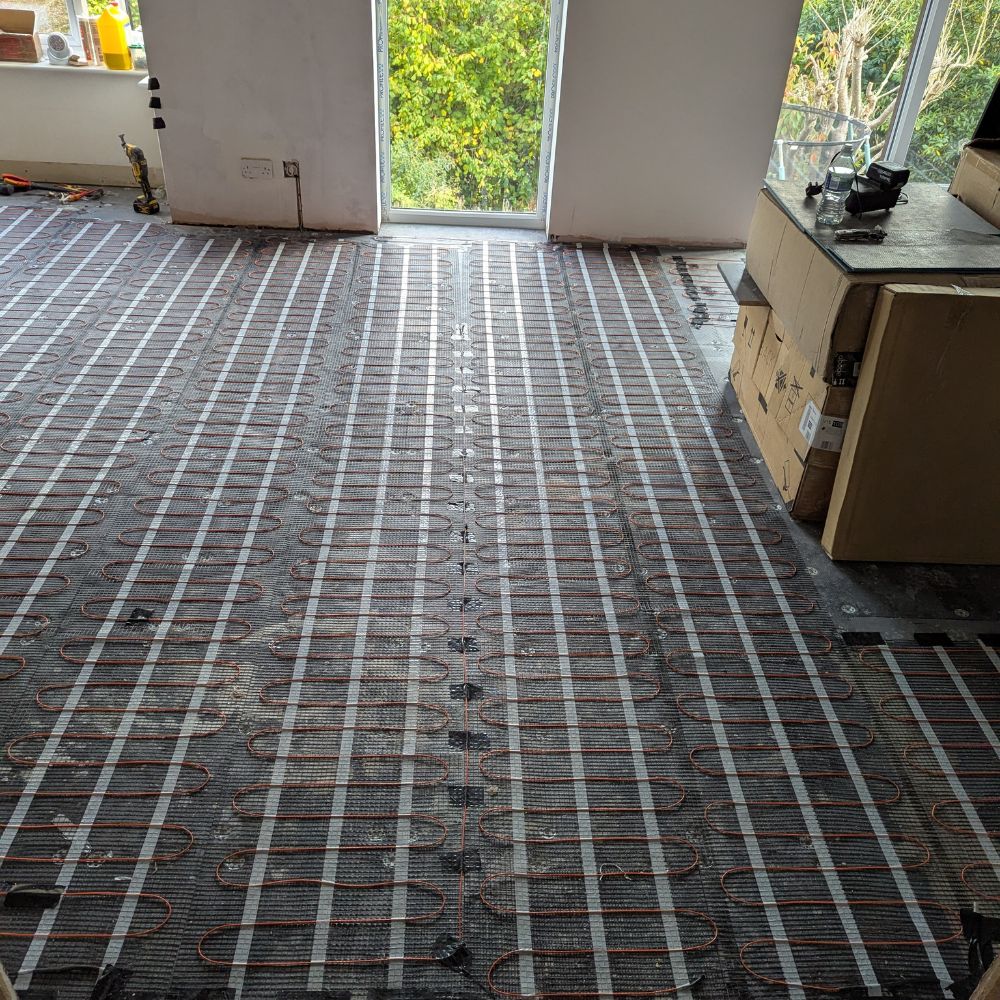

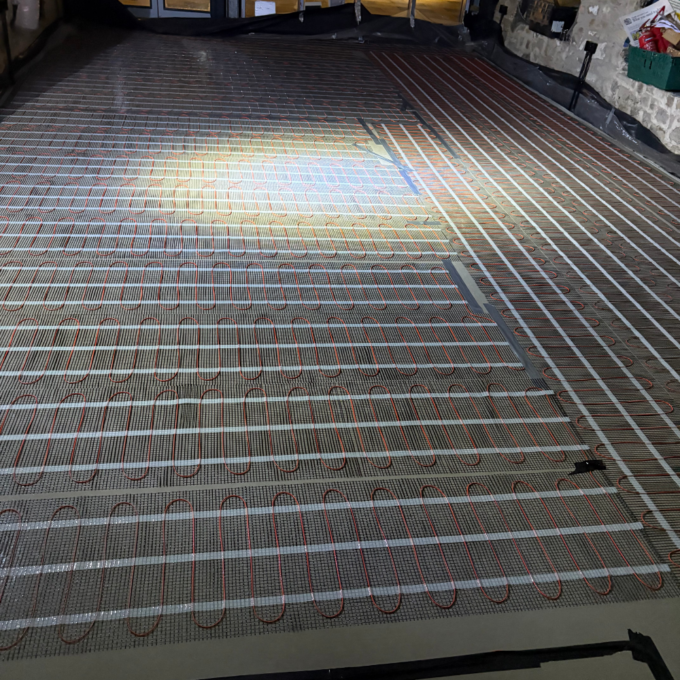

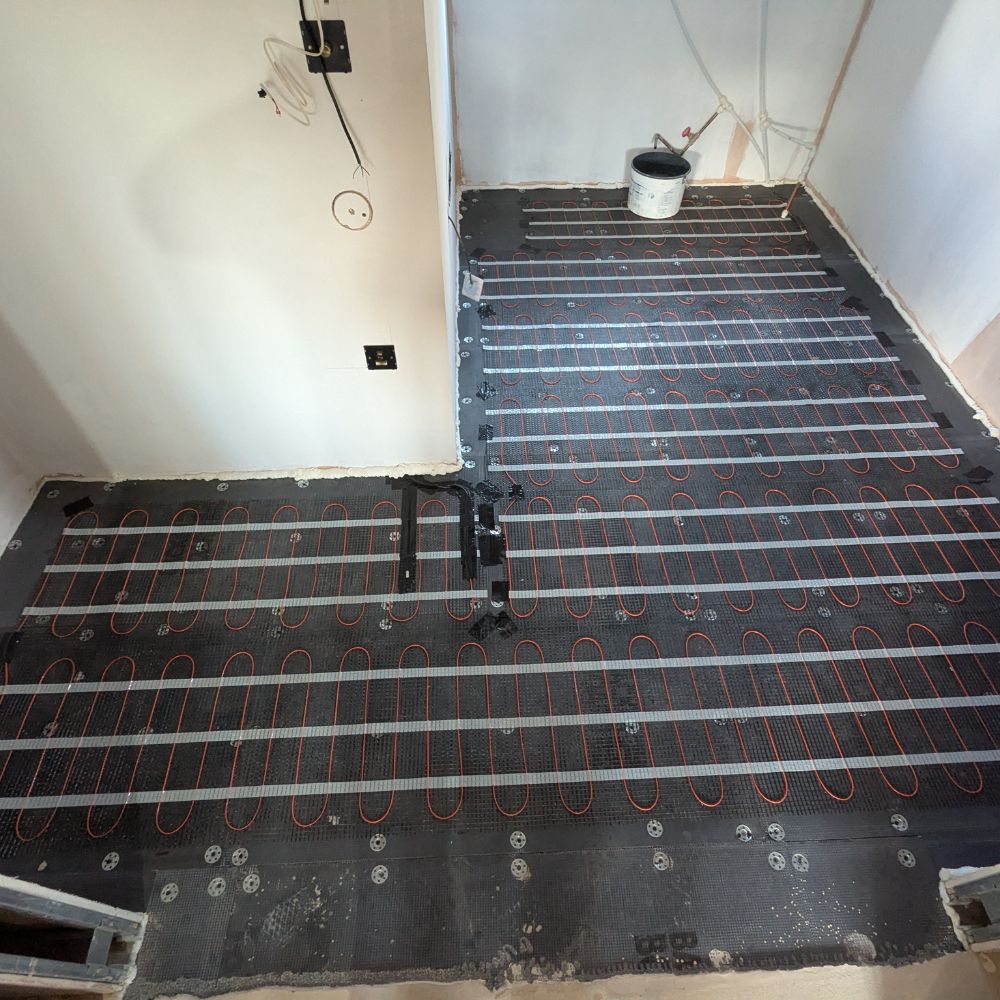

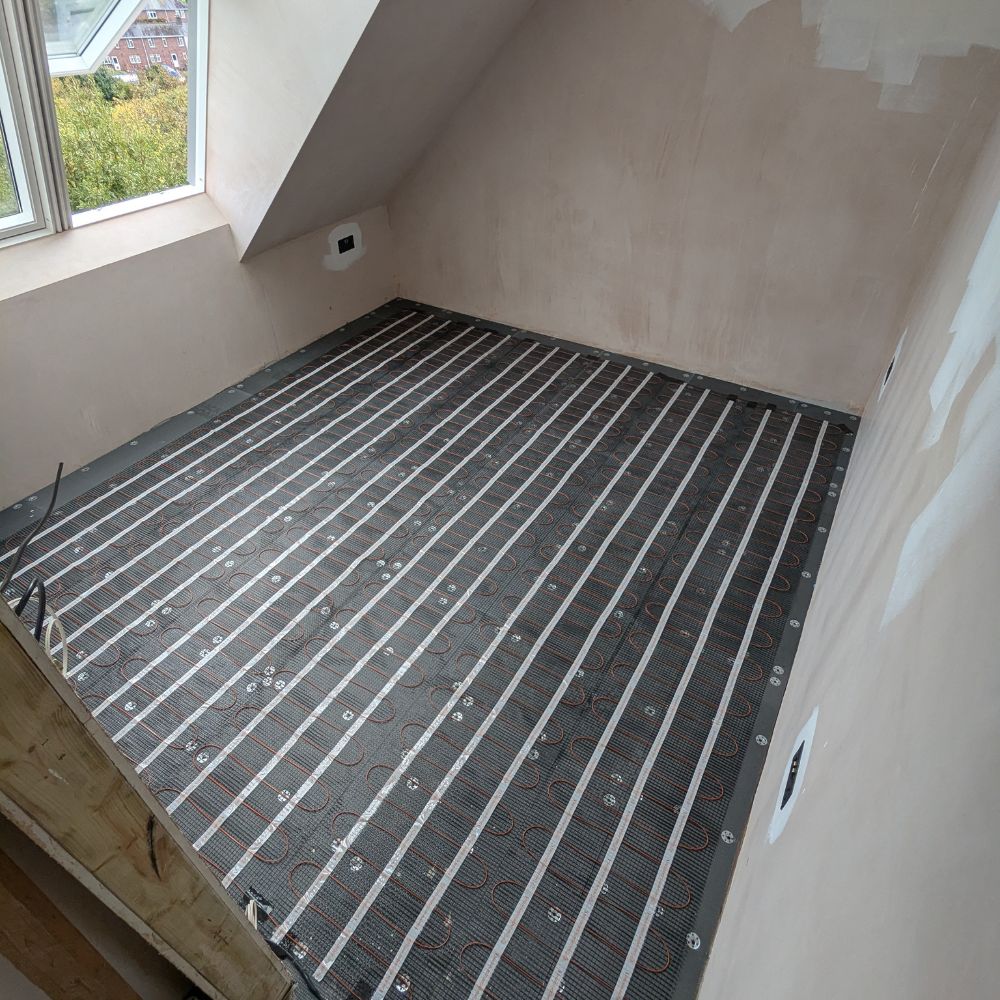

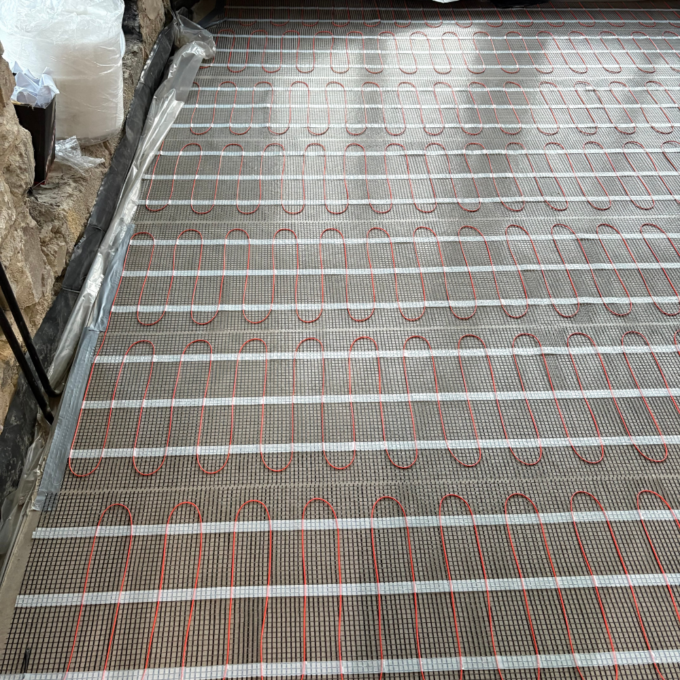

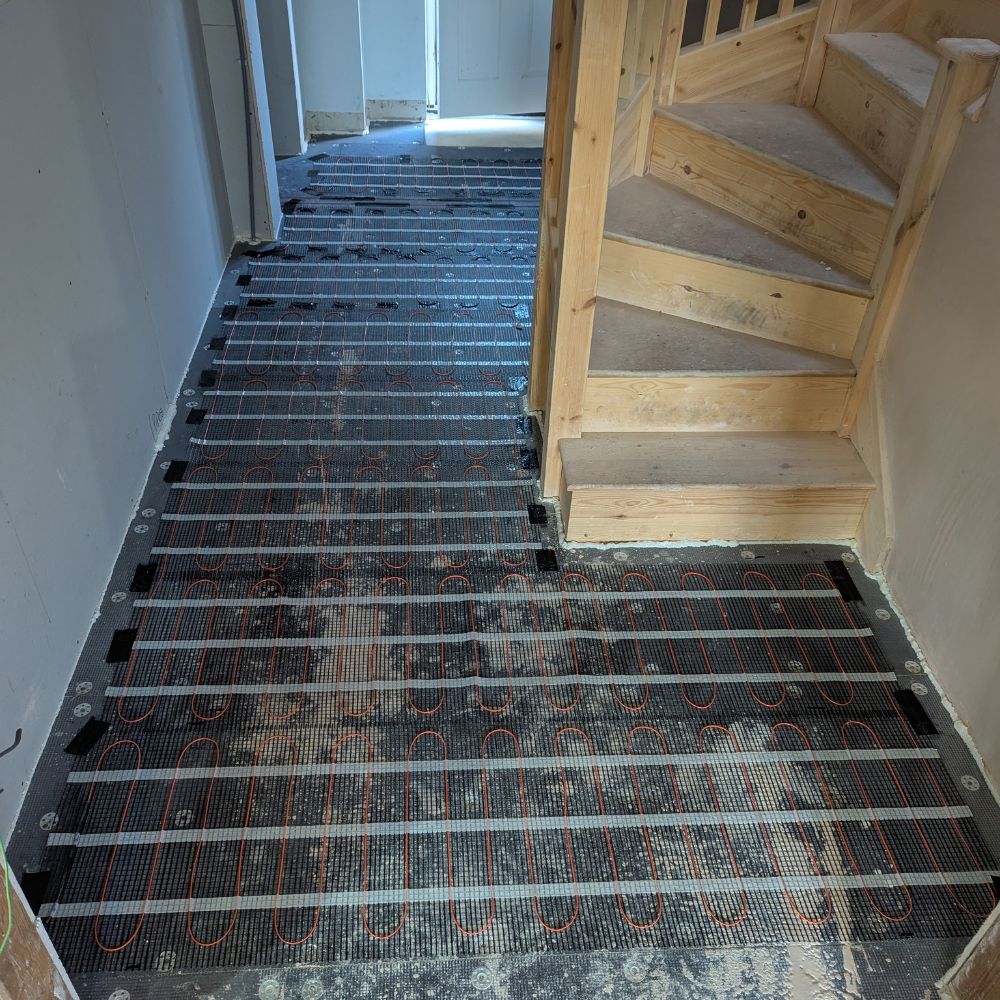

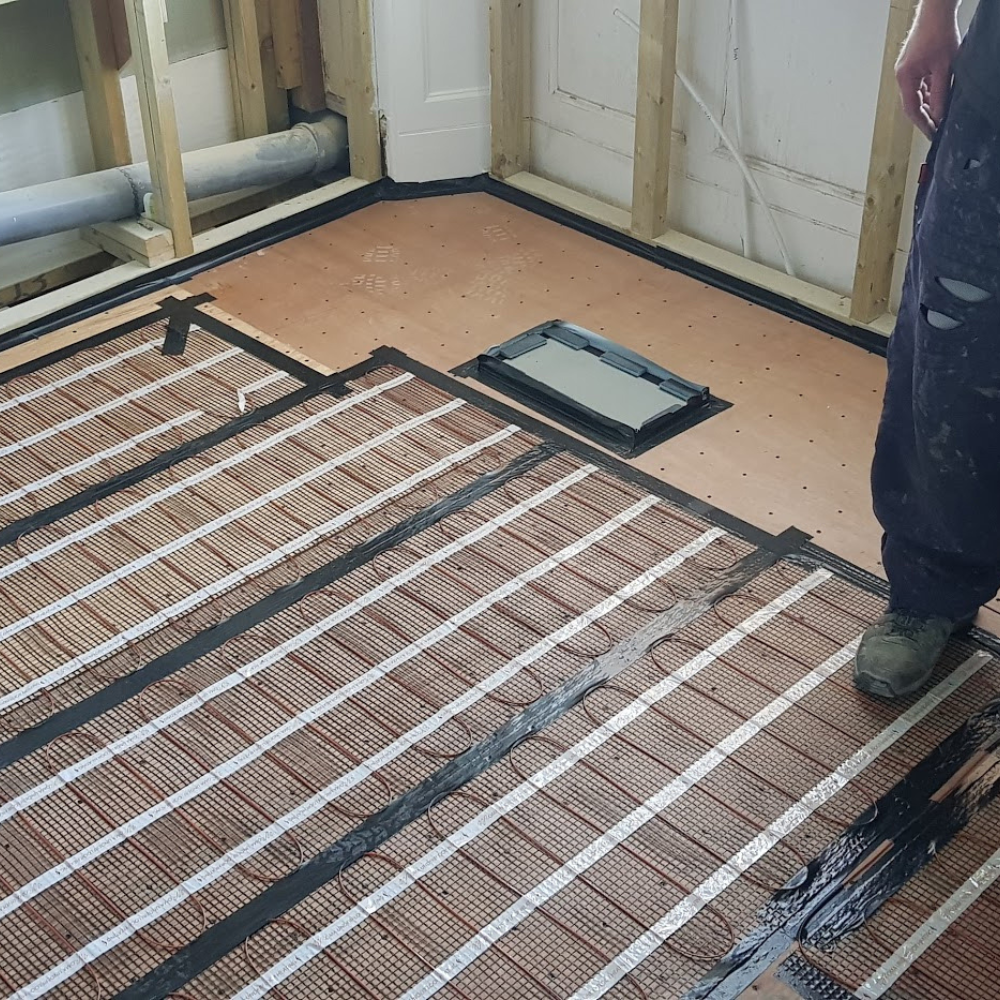

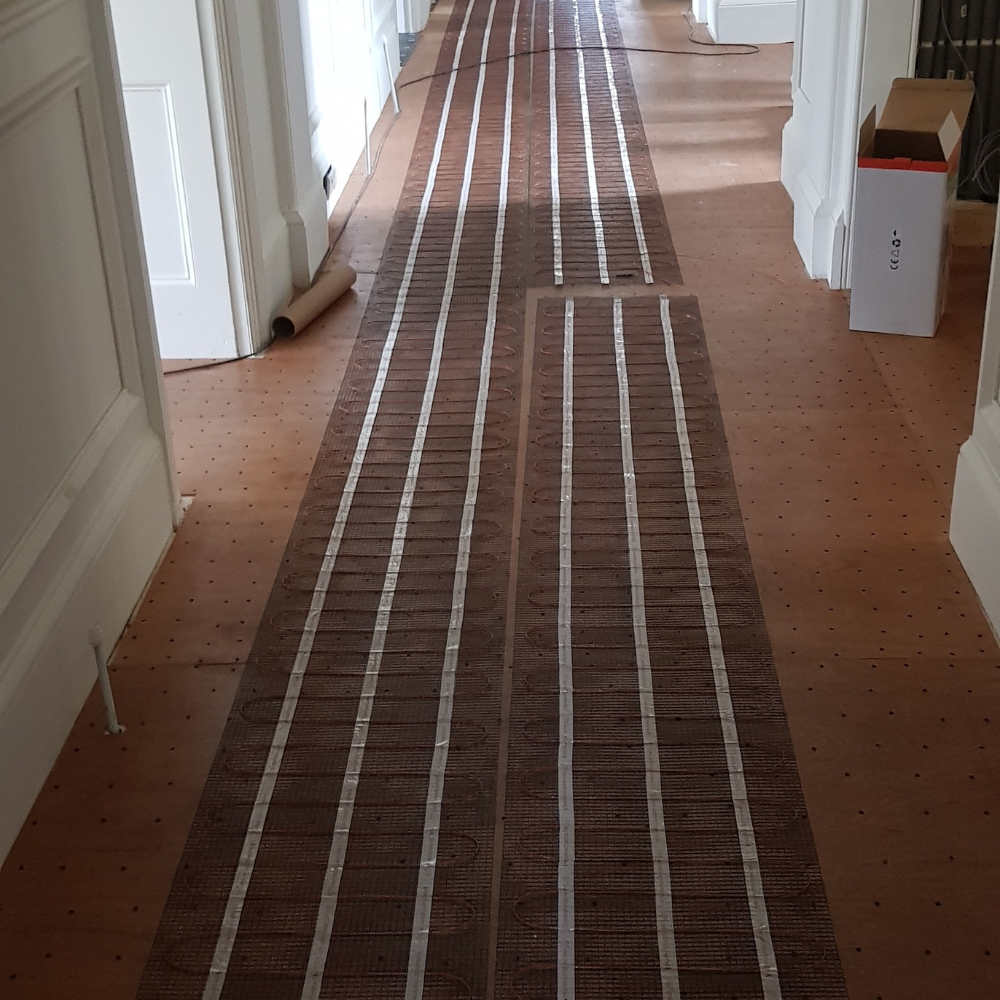

The heat mats can be laid directly on to a stable wood or concrete floor. To add efficiency and the response, we highly recommend insulation be fix directly on top of the sub-floor, prior to the installation of the under floor heating.

The importance of the insulation, should not be underestimated. It plays a integral part of the complete underfloor heating kit. By insulating directly beneath the heat mats, drastically reduces running costs and the warm up time. For new builds, extensions or old problematic floors, we also offer a range of decoupling membranes.

Under Tiles or Stone flooring, XPS, Tile backer thermal boards and floor Tiles should be fixed with a flexible adhesive. We also supply a two part specialist self levelling compound, that can be used to embed the heating before flooring is installed. Only a 3mm depth of self level or adhesive is required to embed the heating, before Tiling.

The R-Mats and R-Cabs, can also be laid under LVT, Karndean or carpet, when embedded in a 10-12mm depth latex/self levelling compound.

Unsure what type of system you need?

Please give our technical team a call or email.

Electric Vs Water - What is the difference?

The common misconception we hear, is that electric underfloor heating is far more expensive than it's water/gas counterparts. In truth, electric heating is super efficient and reliable, when controlled correctly and installed directly on to thermal boards.

Unlike water based heating, which is regulated off an air sensor, electric heating should always be controlled from the floor sensor. This enables the heating to be far more efficient and responsive, heating the floor far quicker than the more expensive and unreliable underfloor water heating.

The main benefit of electric underfloor heating is that there are no unsightly radiators required in most instances. The heat mats can used as a comfort heat source, taking the chill off the floor in the colder months. Alternatively, when covering over 80% of the floor, the heating can also be used as a secondary or primary heat source.

Technical Support, Fitting and Warranty Information

For your peace of mind, all our heating mats and loose cables are covered with our Lifetime Guarantee. We are here to assist and advise, before or after a purchase has been made. We can help determine the best solution and coverage of heating you require for any project.

Our technical team have over 50 years combined knowledge and expertise in the installation and supply of electric heating. Therefore, there is no question or query we wouldn't be able to answer.

In the unlikely event the heating develops a fault, or stops working after installation, we offer free technical support over the phone. In most instances, we can help determine how this may have been caused and resolve the issue with you over the phone.

If an onsite repair needs to be done, we have a specialist team who can locate and repair any faults under any floor. Repairs can usually be rectified quickly and efficiently, with minimal disruption to your installation or daily routines.

In essence, electric heating is very basic how it operates, with the only mechanical/moving parts of the kit being the thermostat controllers. Therefore, when installed correctly, the recommended products are used and the heating signed off by a qualified electrician, your product is covered with our Lifetime Guarantee.

We are here to help, whatever the situation or query, 24/7 and 365 days a year.

The Roma Heating Team

Underfloor Heating Mats Features

• 200w/sqm output / Dual Core
• IPX7 Waterproof Rating
• Teflon insulated with earth shield
• Ultra thin & durable heating element
• High thermal capacity
• Supplied with fixing tape
• Only 2mm thick
• Easy and quick to lay
• Pre-spaced wire (to determine wattage)
• Tough self adhesive fiberglass mesh backing
• Lifetime warranty
• Full fitting instructions
• Technical Free Phone Help Line
• Next working day delivery service (when ordered before 12pm)

Technical Specifications

• Operating Voltage 230/240V - 50Hz
• 200w/sqm Wattage/Output
• IPX7 Waterproof Rating
• Double insulated Element
• Earth connection
• Fully sheathed and earthed elements
• Mat width 0.5m (largest mat 16sqm / 0.5m x 32m)
• 2.5m long cold / connection tails
• 3mm long Floor sensor probe / 10k Ohms thermistor (supplied with all thermostats or purchased individually)
• Cable depth 2mm

Highly Recommended With This System

We offer a free design service to make the whole process a little easier.

If you would like a free quote or just a little more information, please feel free to get in touch with us on 01803 316131.

Our time and advice is free. We can recommend the best underfloor heating system for you.
